Sky Portable Transmitter and Receiver Link

Portable audio video transmitter for professional news gathering over mobile 3G/4G networks, fixed IP and WiFi. Replace expensive satellite links with fixed and mobile Internet audio video links Simultaneously experience highest quality of video and lowest bandwidth in HD Contribution HEVC encoder

Features
  • Operates with both battery and AC power.
  • Aggregates bandwidth from multiple SIM cards and LAN interfaces using advanced network bonding algorithms.
  • Extra light easily carried in a waist pack
  • No need for expensive batteries. Works with any power bank with minimum 2 Ampere DC output
  • Easy management and control through touch screen display.
  • Transmits Audio Video over both fixed and mobile IP networks
  • Works with almost any HDMI or SDI input source such as camera, laptop, mixer, etc.
  • Automatically adapts to bandwidth fluctuations.
  • Automatic switching (fail-over) from LAN to SIM Card transmission and vice versa.
  • Works about 1 hour or more on a full battery.
  • Supports H.264/MPEG-4 AVC video encoding
  • Optional SD- and HD-SDI input with automatic format detection
  • Optional built-in camera and microphone

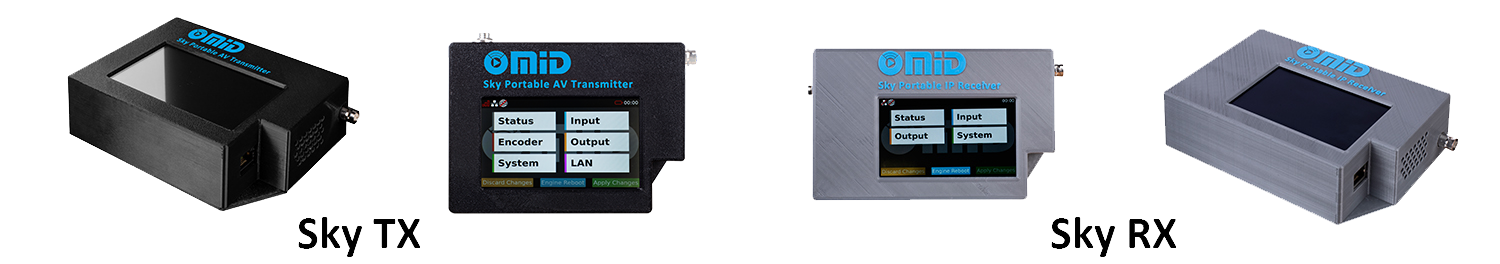

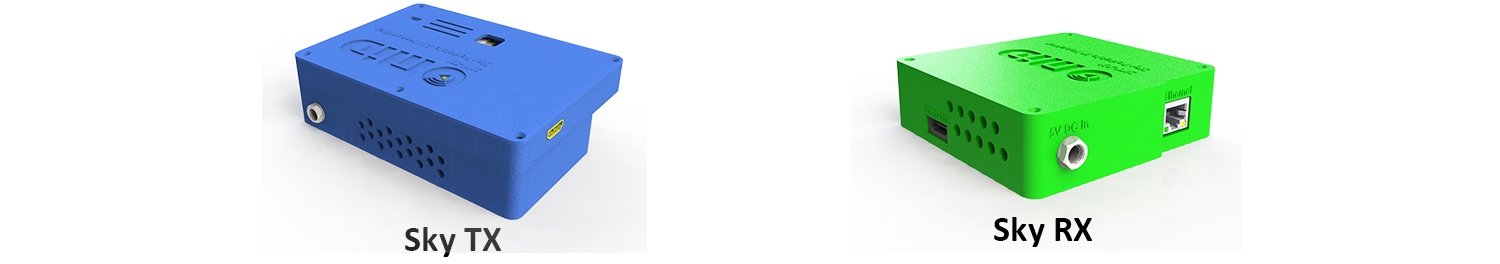

  • Single-channel portable battery-operated Sky Tx receiver
  • Multiple stream reception using four- or eight-channel Sky Rx fixed units in rack-mount boxes
Tech Specs

Input Video
BNC (Option SKY-SDI): HD-SDI (SMPTE 292M), SD-SDI (SMPTE 259M)
HDMI (Option SKY-HDMI)
Embedded Camera (Option SKY-CAM)
Analog Video (Option SKY-CVBS)

Input Audio
Embedded Microphone (Option SKY-MIC)
Embedded Audio from SDI Input (SMPTE 299, SMPTE 272) (Option SKY-SDIA)
Embedded Audio from HDMI Input (Option SKY-HDMIA)
Analog Audio (Option SKY-AAUD)

Outputs
IP Output to unicast/multicast Destination with UDP or RTP/UDP over Gigabit Ethernet port
Adaptive streaming over 3G/4G-LTE network (Option SKY-SIM)
Requires USB Dongle and SIM card with valid mobile data account which should be supplied by the customer.
Requires valid IP address and compatible receiver at the receiving end
Adaptive streaming over Wi-Fi for local broadcasts (Option SKY-WIFI)

Video Encoding
Output Encoded Video Rate Down to 256Kbps
H.264/MPEG-4 AVC Encoding
Standard: ITU-T H.264, ISO/IEC 14496-10, MPEG-4 AVC

Audio Encoding
AAC-LC, HE-AAC (AAC+), HE-AAC V2 (Option MCE-AAC)
Output Rates: 24, 32, 48, 56, 64 Kbps

Management and Control
Full Monitoring and Control of System and Encoding Parameters through responsive web based control panel suitable for mobile and tablet devices
available through local WiFi

Physical Dimensions and Power
Approximate Dimensions (W x D x H): 87 x 130 x 49 mm (3.4” x 5.1” x 1.9” )
Approximate Weight: 1 Kg
Input Power 5VDC at approximately 3A
Consumption: Up to 15 Watts

Environmental Conditions
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Operating Humidity: 10 to 75% non-Condensing

Product Features

Supports H.264/MPEG-4

Supports H.264/MPEG-4 AVC video encoding

1080p@25Hz

Encodes video input resolutions up to 1080p@25Hz

HD input

HDMI input

Streaming

Streaming over SIM card and over local broadcasts

Streaming

Streaming over WiFi and over Cloud Computing

Portable

Approximate Dimensions (W x D x H): 87 x 130 x 49 mm
Approximate Weight: 300 gr
