Vivid HEVC Decoder 4K

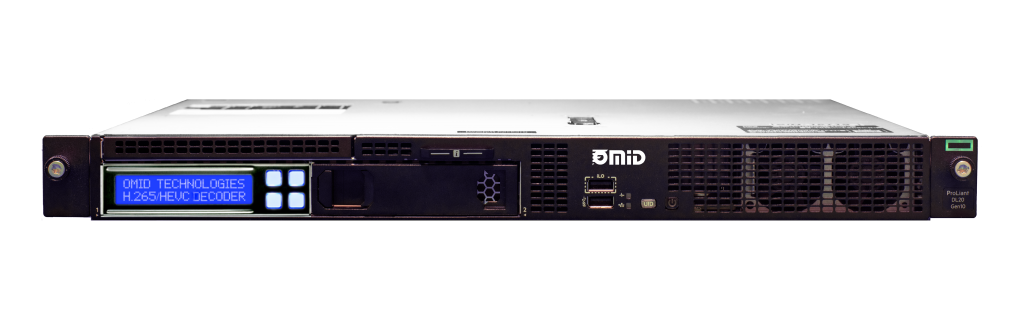

Vivid MCD-2500 Professional HEVC Decoder

Are you looking for a professional decoder for all their applications in satellite or terrestrial receiver, network, inner-studio or transmitter stations? The Vivid professional decoder (MCD-2500) by using of the up-to-date standards in field of audio and video reception and presentation provided accessibility to a variety of standard audio and video sources in a compact device and supported users in different usage. Also the Vivid Professional Decoder by using DVB standard, provided possibility of reception of transmitted video on variety of communication substrates such as satellite (DVB-S/S2), digital television (DVB-T/T2), inner-studio (DVB-ASI) and internet network (IP).

Tech Specs

Input Video

Input Interface:

BNC: 3G-SDI (SMPTE 424M), HD-SDI (SMPTE 292M), SD-SDI (SMPTE 259M)

HDMI (Option MCE-HDMI)

SDI Color Precision: 8, 10-bit YUV 4:2:2 in all modes

HDMI Color Precision: 8, 10 and 12-bit (Deep Color)

Video Resolution@Rate :

1080p (1920x1080)@23.98Hz, 24Hz, 25Hz, 29.97Hz, 30Hz, 50Hz, 59.94Hz, 60Hz

1080i (1920x1080)@50Hz, 59.94Hz, 60Hz

720p (1280x720)@50Hz, 59.94Hz, 60Hz

PAL: 576i (720x576)@50Hz

NTSC: 480i (720x480)@60Hz

Internal Color Bar and Black Pattern Generator

Input Audio

Embedded Audio Sampling: Television Standard sample rate of 48 KHz at 24-bit

Up to 16 channel Embedded Audio from SDI Input (SMPTE 299, SMPTE 272)

Up to 2 channel AES/EBU Digital Audio Input (Option MCE-DAIO)

Internal Test Tone or Silence Generator

Outputs

SDI re-Clocked Loop through Output

IP Output to unicast/multicast Destination with UDP or RTP/UDP

Forward Error Correction (ProMPEG FEC), SMPTE 2022-1

2 ASI Outputs (Option MCE-ASI)

Maximum TS Rate: 50.00Mbps

Video Encoding

Constant Bit-Rate (CBR) Encoding with Zero Null Stuffing in the Output

Supports GOP Lengths of 1 to 250

Output Encoded Video Rate Down to 500Kbps

H.265/HEVC Encoding

Standard: ITU-T H.265, ISO/IEC 23008-2, HEVC

Profiles: Main10 422, Main10, Main

Levels: 5.1, 5.0, 4.1, 4.0, 3.2, and 3.1

Adaptive GOP Supported

Entropy Coding: CABAC

H.264/MPEG-4 AVC Encoding

Standard: ITU-T H.264, ISO/IEC 14496-10, MPEG-4 AVC

Profiles: High 422, High, Main

Levels: 4.1, 4.0, 3.2, 3.1 and 3.0

Interlace Coding: Field Structure, PAFF, MBAFF

Entropy Coding: CAVLC, CABAC

Intra Prediction: All Modes Supported

Inter Prediction: All Block Sizes Supported

Audio Encoding

One Stereo pair Encoding on Base System; Optional Simultaneous Second Stereo pair Encoding (Option MCE-AUD2)

AAC-LC, HE-AAC (AAC+), HE-AAC V2 (Option MCE-AAC)

Output Rates: 24, 32, 48, 56, 64 Kbps

MPEG I Layer II Audio Encoding ISO/IEC 11172-3

1 channel (Mono), 2 channel (Stereo)

Output Rates: 32 Kbps up to 384 Kbps

Management and Control

Full Monitoring and Control of System and Encoding Parameters through Front Panel

Password-Protected Web Browser Interface

Physical Dimensions and Power

Dimensions (W x D x H): 435 x 707 x 43 mm (17.1” x 27.8” x 1RU)

Approximate Weight: 14 Kg

Redundant Power Supply, 100-240VAC/50-60Hz, two separated 3-pin IEC Connector

Consumption: 400 Watts

Environmental Conditions

Operating Temperature: 0°C to 50°C (32°F to 122°F)

Operating Humidity: 10 to 75% non-Condensing

Vivid Block Diagram

Vivid MCD-2500 Professional HEVC Decoder

Product Features

HEVC™ Video Encoding

This format is proven to be 25-50% more efficient in compressing videos comparing to the AVC.

4K Quality Streaming

This Device is capable of encoding video input resolutions up to 1080p@60Hz.

Full Cloud Compatibillity
